Honeywell T6 Pro Thermostat 2H/1C Programmable TH6210U2001

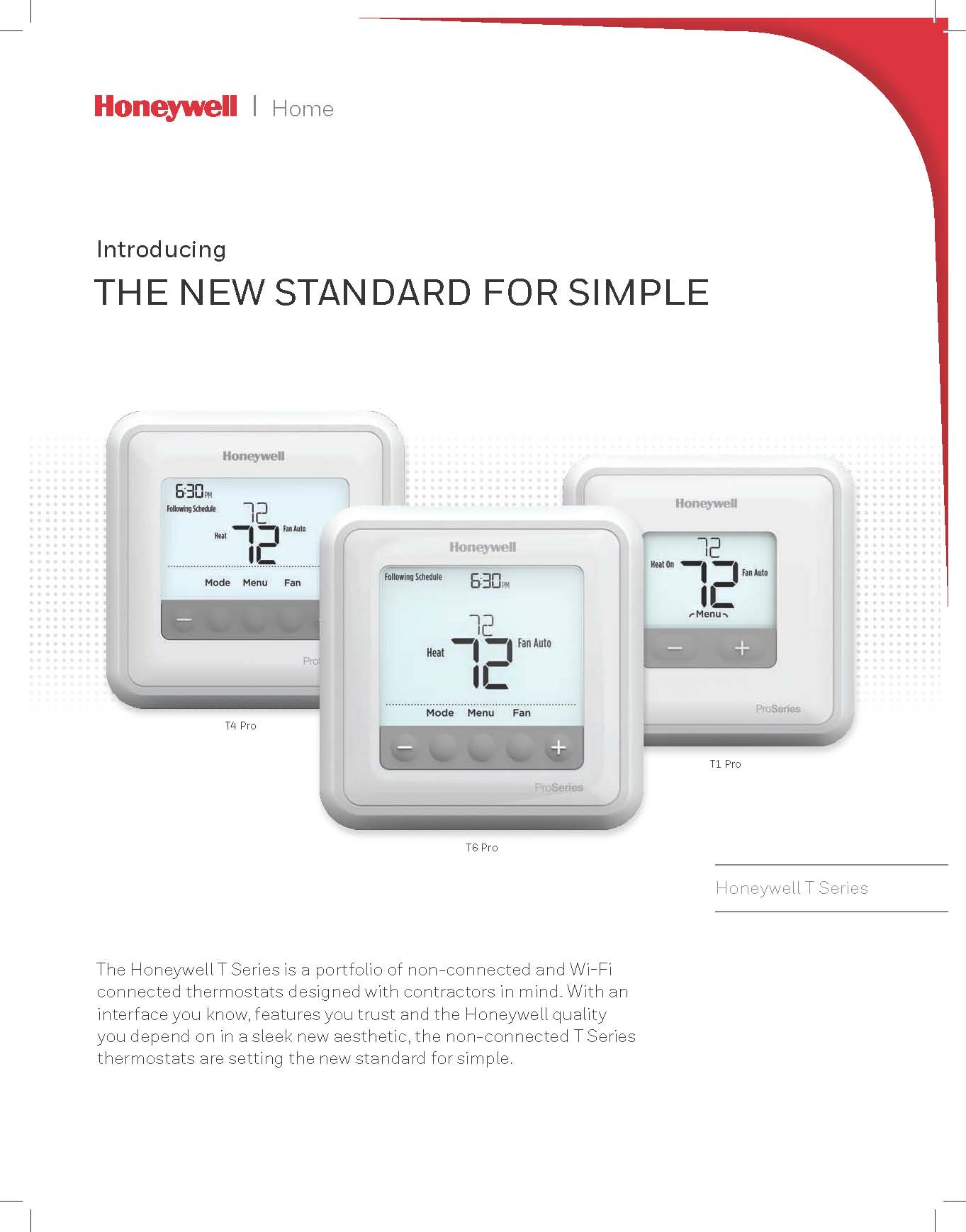

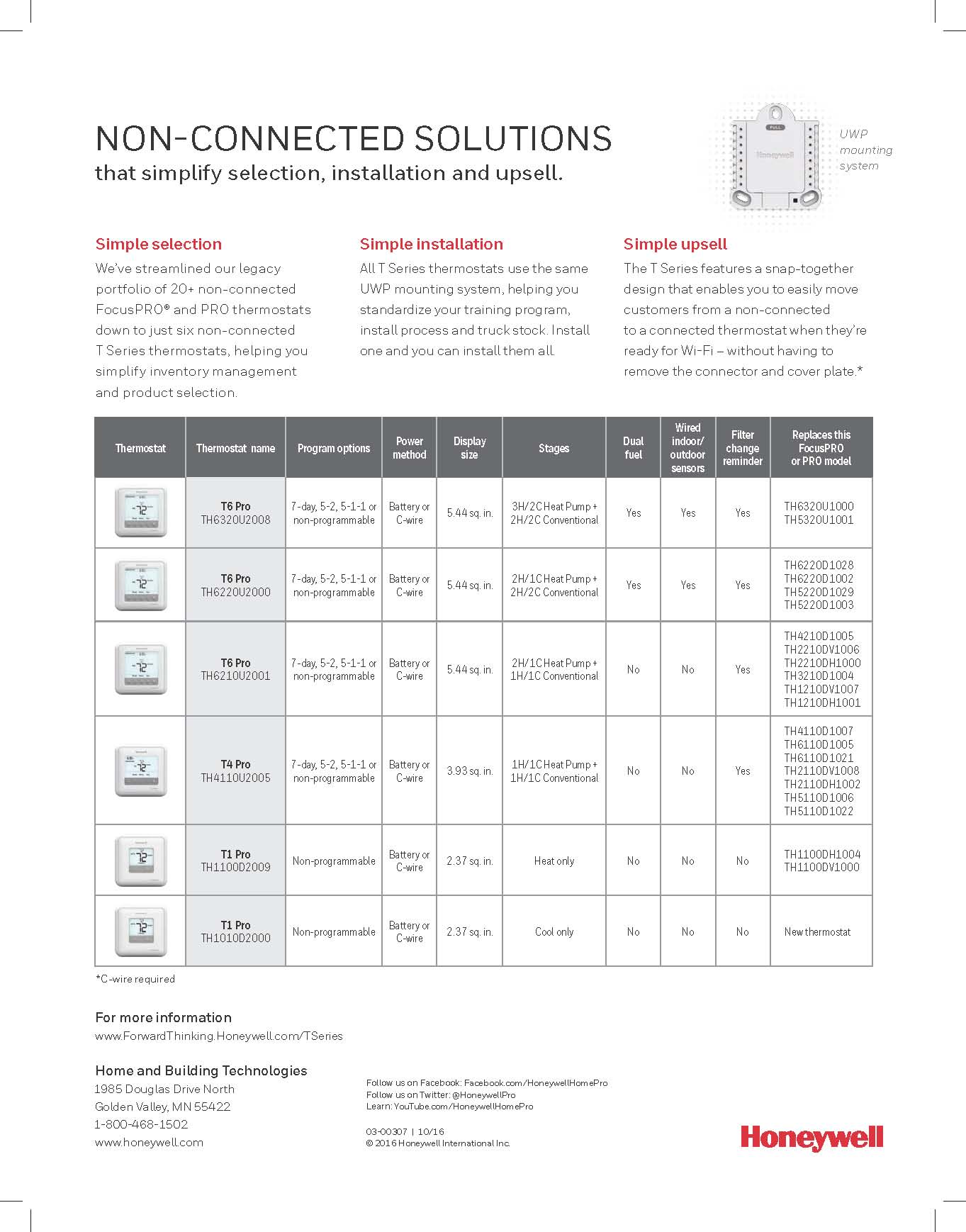

Honeywell's brand new Thermostat T series line offers simplicity and a streamlined installation, warranty and support processes. This series replaces the PRO and PRO Focus series and is designed to have one footprint the UWP mounting system, making installation and programming easier and quicker. The T series TH6210U2001 T6 Pro has an aesthetically pleasing cool white backlight with digital display. The green screen traditional background is gone for this breathtaking new sleek and modern look.
Features: - T6 Pro Thermostat Model TH6210U2001
- Honeywell UWP mounting system
- 2 AA batteries
- 5 year warranty*
- Battery or Hardwired for power
- Auto Changeover
- Flexible Programming (7,5-2,5-1-1, or Off)
- 2 Heat/ 1 Cool Heat Pump or 1 Heat/ 1 Cool Conventional
- Precise comfort control
- Adaptive Intelligent Recovery
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Product Specifications
- Application
- Standard Efficient Gas Forced Air, High Efficacy Gas
Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil,
Geothermal Heat Pump, Air to Air Heat
- Dimensions (in.)
- 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
- Dimensions (mm)
- 103.6 mm long x 103.6 mm wide x 28 mm deep
- Includes
- Thermostat, UWP mounting system, Installation (J-box) adaptor,
Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
- Item Type
- Product
- Mounting
- UWP Mounting System
- Electrical Ratings
- 20 to 30 Vac
- Stages
- Up to 2 Heat/1 Cool Heat Pumps; Up to 1 Heat/1 Cool Conventional Systems
- Electrical Connections
- Honeywell UWP Mounting System
- Operating Humidity Range (% RH)
- 5 to 90% RH, non-condensing
- Supply Voltage
- 20 to 30 Vac
- Switch Positions (System)
- HEAT-OFF-COOL-AUTO-EM.
- Switch Positions (Fan)
- AUTO-ON-CIRC-FOLLOW SCHEDULE
- Operating Temperature Range (F)
- 37 F to 102 F
- Operating Temperature Range (C)
- 2.7 C to 39 C
- Shipping and Storage Temperature Range (F)
- - 20 F to 120 F
- Shipping and Storage Temperature Range (C)
- - 28.9 C to 48.9 C
- Accuracy (F)
- 5 F
- Accuracy (C)
- 0.5 C
- Differential Temperature (F)
- ± 1 F
- Differential Temperature (C)
- ± 0.5 C
- Interstage Differential Temperature (F)
- 1 to 1.5 F Multistage models only
- Ambient Temperature Range (F)
- 32 F to 120 F
- Ambient Temperature Range (C)
- 0 C to 50 C
- Switch Type
- Relay
- LEDs
- LED Back Light
- Programmability
- 7 day, 5-1-1 day, 5-2 day, or Non-programmable
- Power Method
- Battery or Hardwired
- Terminal Designations
- RC, R, C, W, W2, O/B, Y, G, K, L/A, E
- Display
- Large Display, Soft Key Controls
- Display Size
- 5.44 sq. in.
- Temperature Control Mode Selections
- Ambient Air Temperature
- Changeover
- Auto or Manual
- Setting Temperature Range (F)
- Heat: 40 F to 90 F; Cool 50 F to 99F
- Setting Temperature Range (C)
- Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
- Heat Current
- 0.02-1.0 A
- Fan Current
- 0.02-.05 A
|
|
|
|
|
|
|
