SYSTEM IS BRAND NEW & COMPLETELY OPERATIONAL

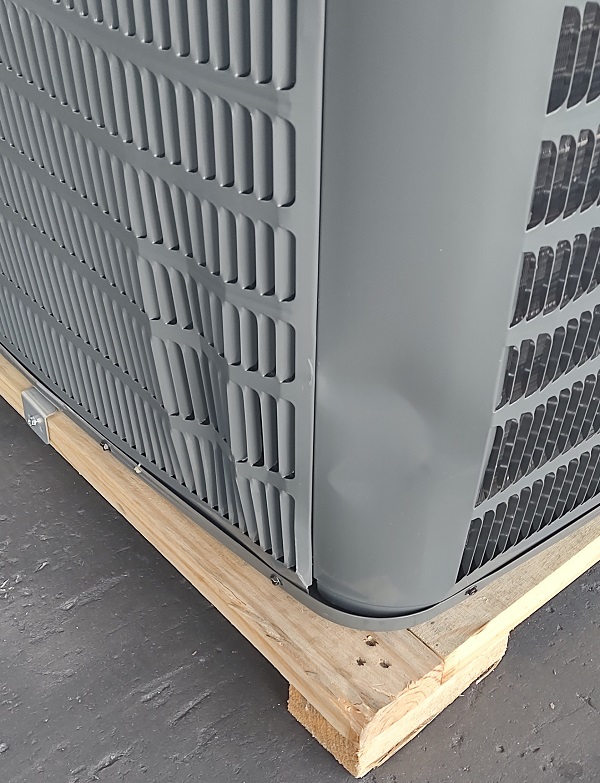

COSMETIC DAMAGE TO CONDENSER ONLY
FULL MANUFACTURER'S WARRANTY APPLIES

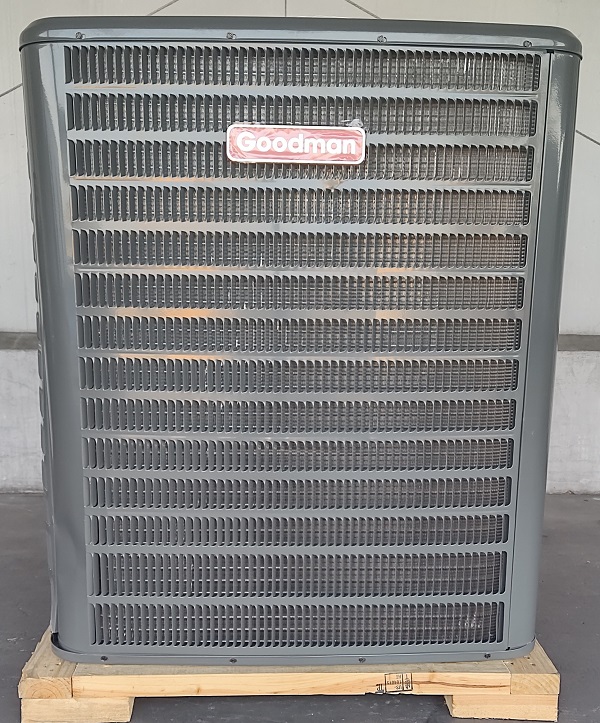

Goodman 5 Ton Heat Pump Split System 14.3 SEER2, GSZB406010 & AMST60DU1400
The 5 ton Goodman Split system includes air handler, condenser, choice of heat strip and a conditional 10 year parts warranty. This Goodman Heat Pump 2 piece system is efficient, assembled in the USA and 2023 DOE compliant achieving AHRI Certified ratings of 14.30 SEER2, 11.5 EER2, 7.50 HSPF2, generating 55,000 Cooling BTUs, 57,000 Heating BTUs
GSZB406010:
Standard Features
• Energy-efficient compressor• SmartShift® technology to ensure quiet reliable defrost
• Copper tube/ enhanced aluminum fin coil with 5mm diameter copper tubes in 1.5-3.5 tons
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed High- and low-pressure switches
• Factory-installed High- and low-pressure switches
• Factory-installed bi-flow liquid line filter drier
• Single Speed PSC fan motor
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of copper tubing length
• Contactor with lug connection
• AHRI Certified; ETL Listed
Cabinet Features
• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
AMST60DU1400:
Product Features
• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-410A refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• AHRI certified; ETL listed
• Rigid SmartFrameTM cabinet
• Horizontal or vertical configuration capabilities
• 21” depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
|
|
|
 |
|
 |
|
