4 Ton Rheem Two Stage Air Handler RH2TZ4821STANNJ (5794)(T)
4 Ton Rheem Two Stage Air Handler RH2TZ4821STANNJ (5794)(T)

List Price: $1,988.00
Our Price: $1,299.00
Sale Price: $1,099.00
You save $889.00!


Availability: Currently Unavailable
Product Code: 3323B

Heat Source

Please Select*:

Qty:
Description Technical Specs

UNIT IS BRAND NEW & COMPLETELY OPERATIONAL

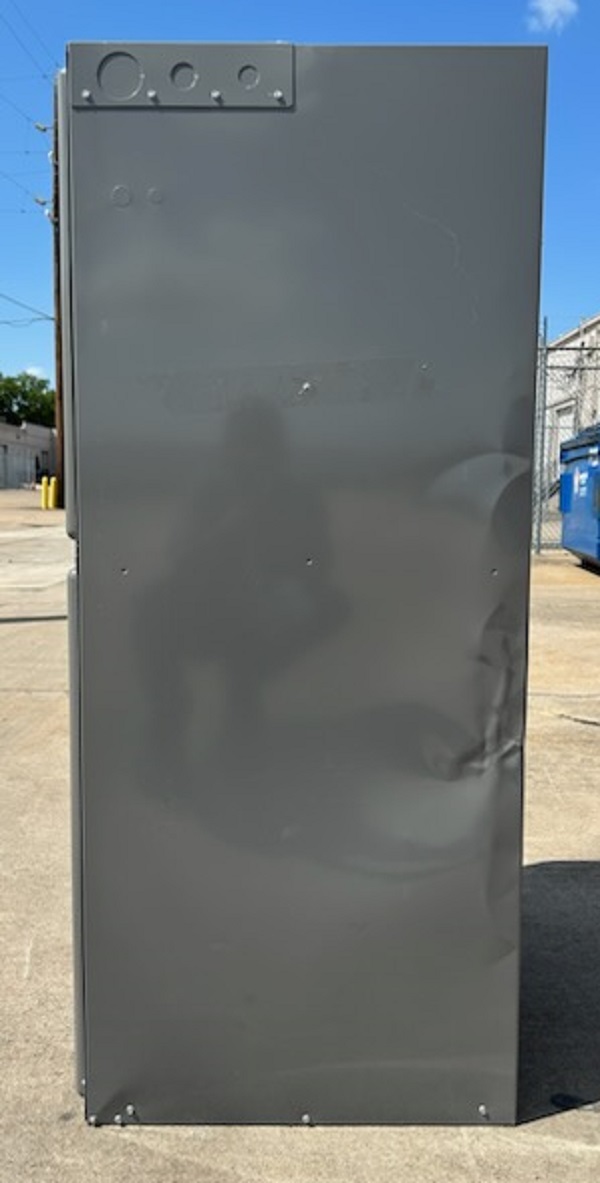

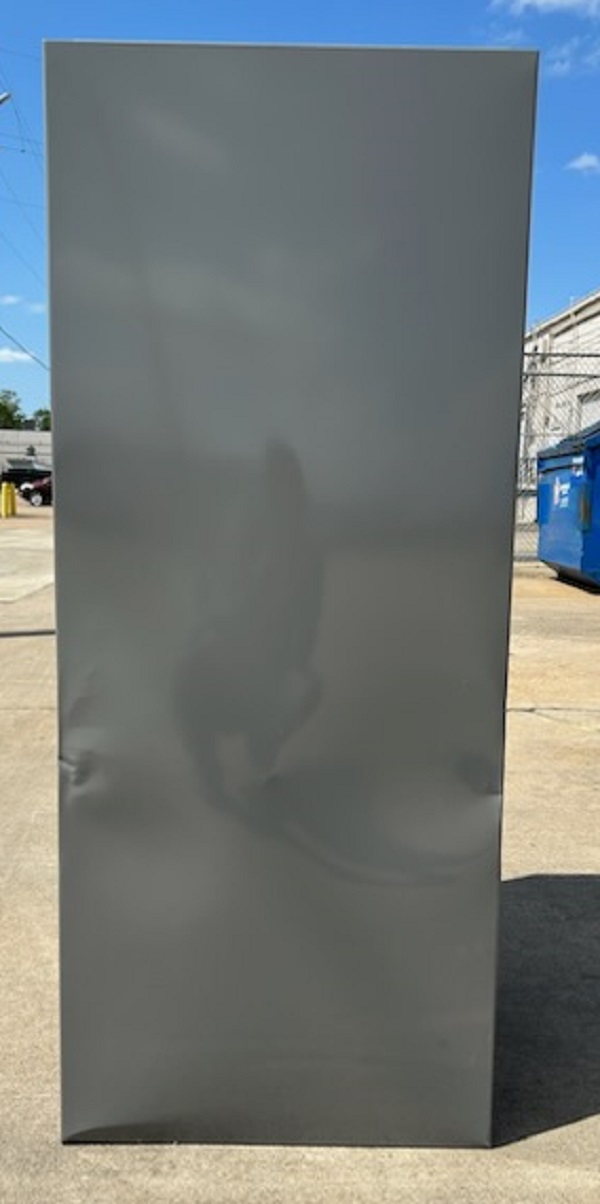

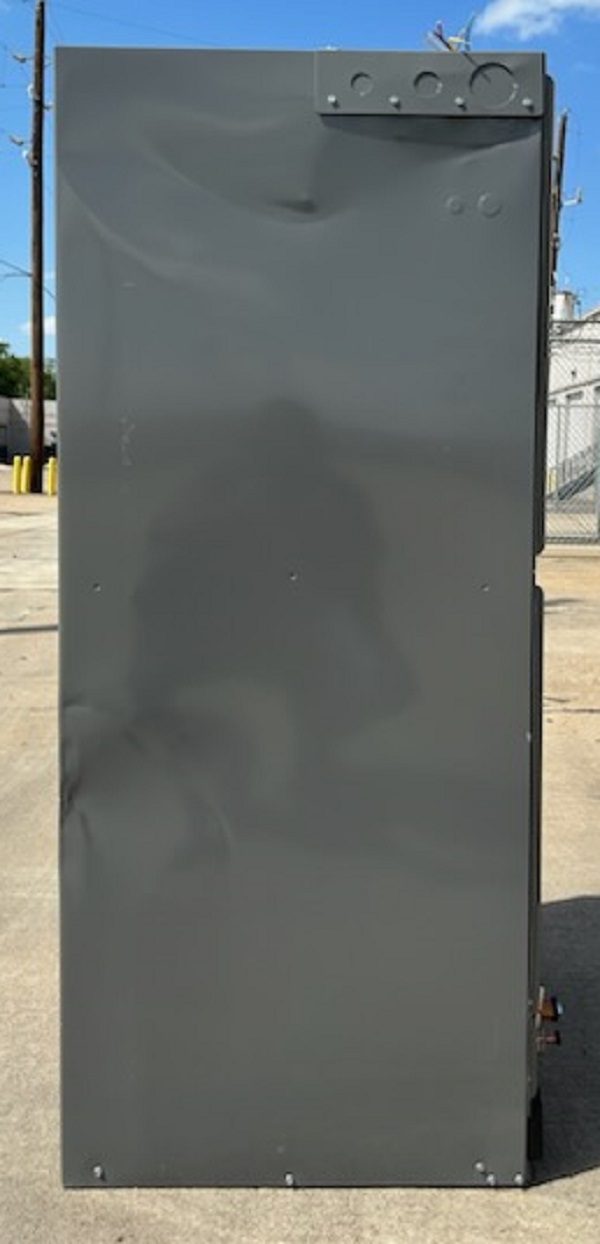

COSMETIC DAMAGE ONLY
FULL MANUFACTURER'S WARRANTY APPLIES

Rheem 4 Ton Air Handler Two Stage RH2TZ4821STANNJ
RH2TZ Constant Torque Motor (ECM)

Features and Benefits
  • RH2TZ features a Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort.
  • Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
  • 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 42 1/2 to 57 inches tall and 22 inches deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7” external static pressure.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
  • Suitable for application in mobile homes.
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193.
