SYSTEM IS BRAND NEW & COMPLETELY OPERATIONAL

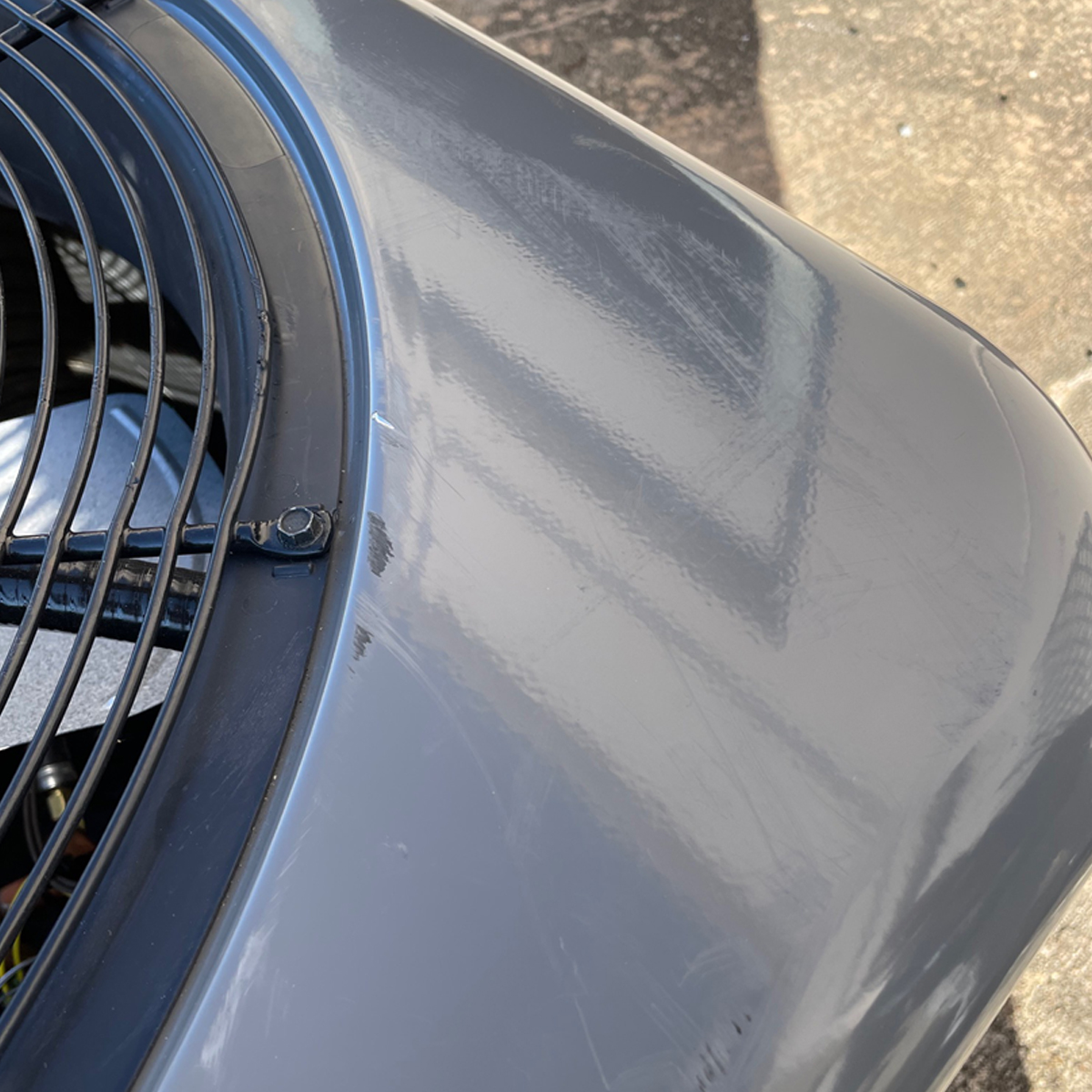

VERY MINOR COSMETIC DAMAGE TO CONDENSER ONLY / NO DAMAGE TO AIR HANDLER

FULL MANUFACTURER'S WARRANTY APPLIES

We simply offer the finest heat pump solutions in the business. Top-quality, Rheem products with the latest technology, dependable performance, great warranties and excellent service and support. The all new RP14 & RH1T models meet the 2015 EPA standards.

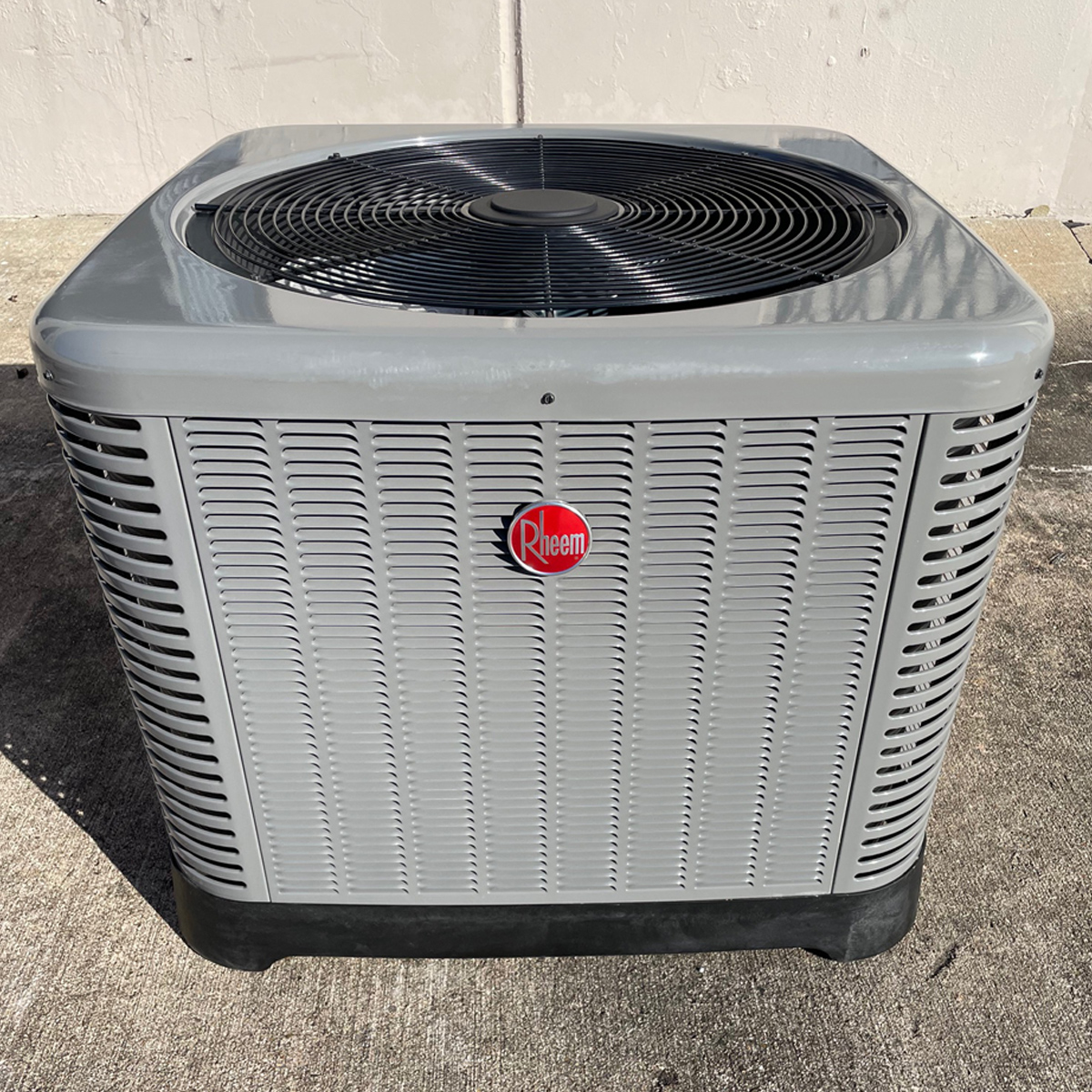

Classic Series: Single Stage (RP14)

• New composite base pan – dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
• Powder coat paint system – for a long lasting professional finish
• Scroll compressor – uses 70% fewer moving parts for higher efficiency and increased reliability
• Modern cabinet aesthetics – increased curb appeal with visually appealing design

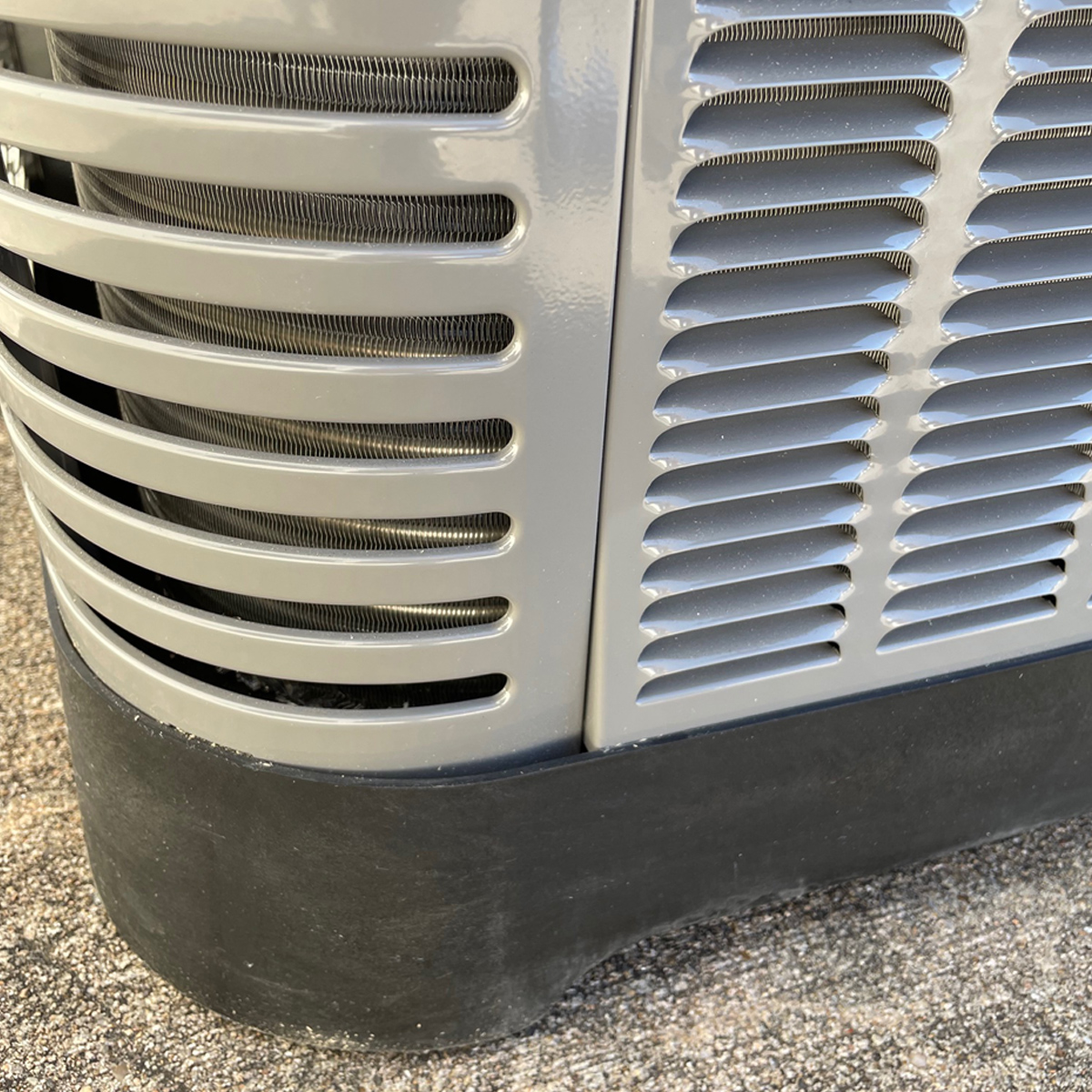

• Curved louver panels – provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
• Optimized fan orifice – optimizes airflow and reduces unit sound
• Rust resistant screws – confirmed through 1500-hour salt spray testing
• PlusOne™ Expanded Valve Space – 3"-4"-5" service valve space – provides a minimum working area of 27-square inches for easier access
• PlusOne™ Triple Service Access – 15" wide, industry leading corner service access – makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
• Diagnostic service window with two-fastener opening – provides access to the high and low pressure.
• External gauge port access – allows easy connection of “low-loss” gauge ports
• Single-row condenser coil – makes unit lighter and allows thorough coil cleaning to maintain “out of the box” performance
• 35% fewer cabinet fasteners and fastener-free base – allow for faster access to internal components and hassle-free panel removal
• Service trays – hold fasteners or caps during service calls
• QR code – provides technical information on demand for faster service calls
• Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire.

Standard Efficiency - X-13 Motor Motor (RH1T/RH2T)

• RH1T/RH2T feature a Constant Torque motor (ECM) which provides enhanced SEER performance with most Rheem outdoor units.
• Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
• Factory-installed indoor coil. • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
• Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers on 15KW and up which meet U.L. and cUL requirements for service disconnect.

• 1 1/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 42 1/2 to 55 1/2 inches [1080 to 1410 mm] tall and 22 inches [559 mm] deep.
• All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
• Enhanced airflow up to .7" external static pressure.
• Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
• RH1T/RH2T air handlers are also designed and engineered to operate in mobile homes.

WARRANTY:

• Ten years all parts
• Labor warranty should be provided by your installing contractor

CERTIFICATIONS:

Rheem does not endorse, approve, or certify any online sale of its products through auction websites, online retailers or any other method of online sales direct to consumers without an in-person site visit, inspection, and installation by a qualified, trained HVAC professional. Budgetheating.com endorses this policy and requests that you adhere to these guidelines.
