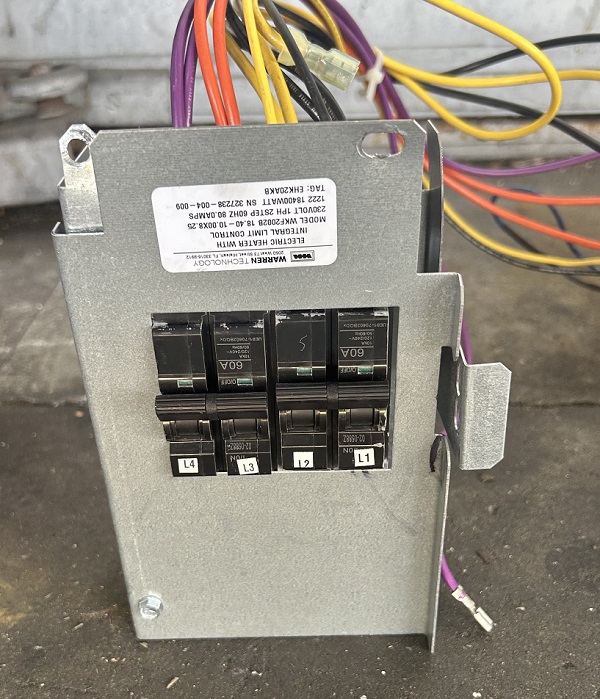

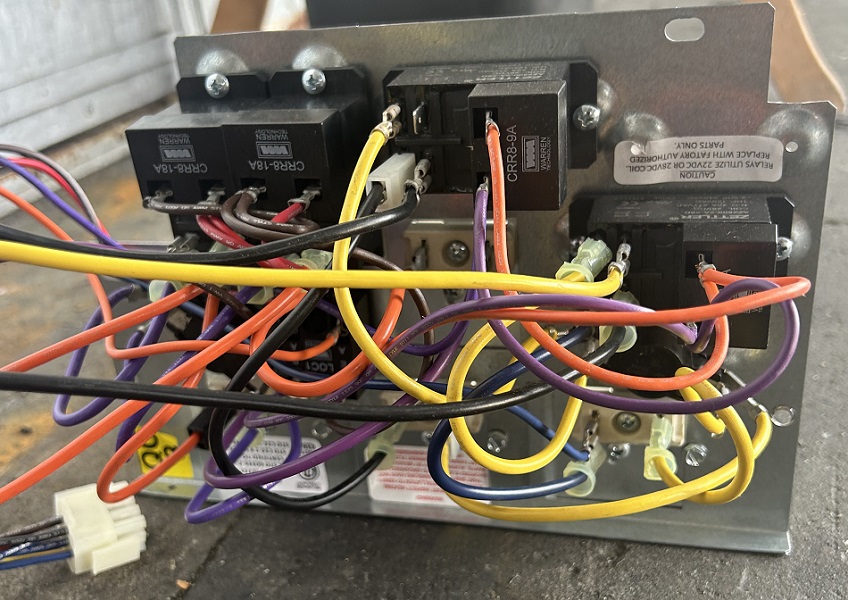

20kW breakered heat strip for Carrier/Bryant/Payne air handlers, WKF2002B (4009)(F)
20kW breakered heat strip for Carrier/Bryant/Payne air handlers, WKF2002B (4009)(F)

List Price: $279.00
Our Price: $225.00
Sale Price: $190.00
You save $89.00!


Availability: Currently Unavailable
Product Code: 10623A


Unit Model #*: 		Enter existing unit MODEL # when available.
Enter existing heater PART # when available.
*IMPORTANT*Please provide as much information as possible to ensure proper fit. Leaving Model # or Heater # blank could result in delays and/or a Budget Heating & Air representative may need to contact you. Pictures can also be forwarded to [email protected], usually of the equipment data plate or heat strip label. Click on images to scroll through examples.

Qty:
Description

HEATER IS BRAND NEW & COMPLETELY OPERATIONAL
MINOR COSMETIC DAMAGE WHICH HAS BEEN REPAIRED BY LICENSED TECH
FULL MANUFACTURER'S WARRANTY APPLIES


PICTURE MAY VARY FROM ACTUAL PRODUCT REPLACES MODEL KFCEH

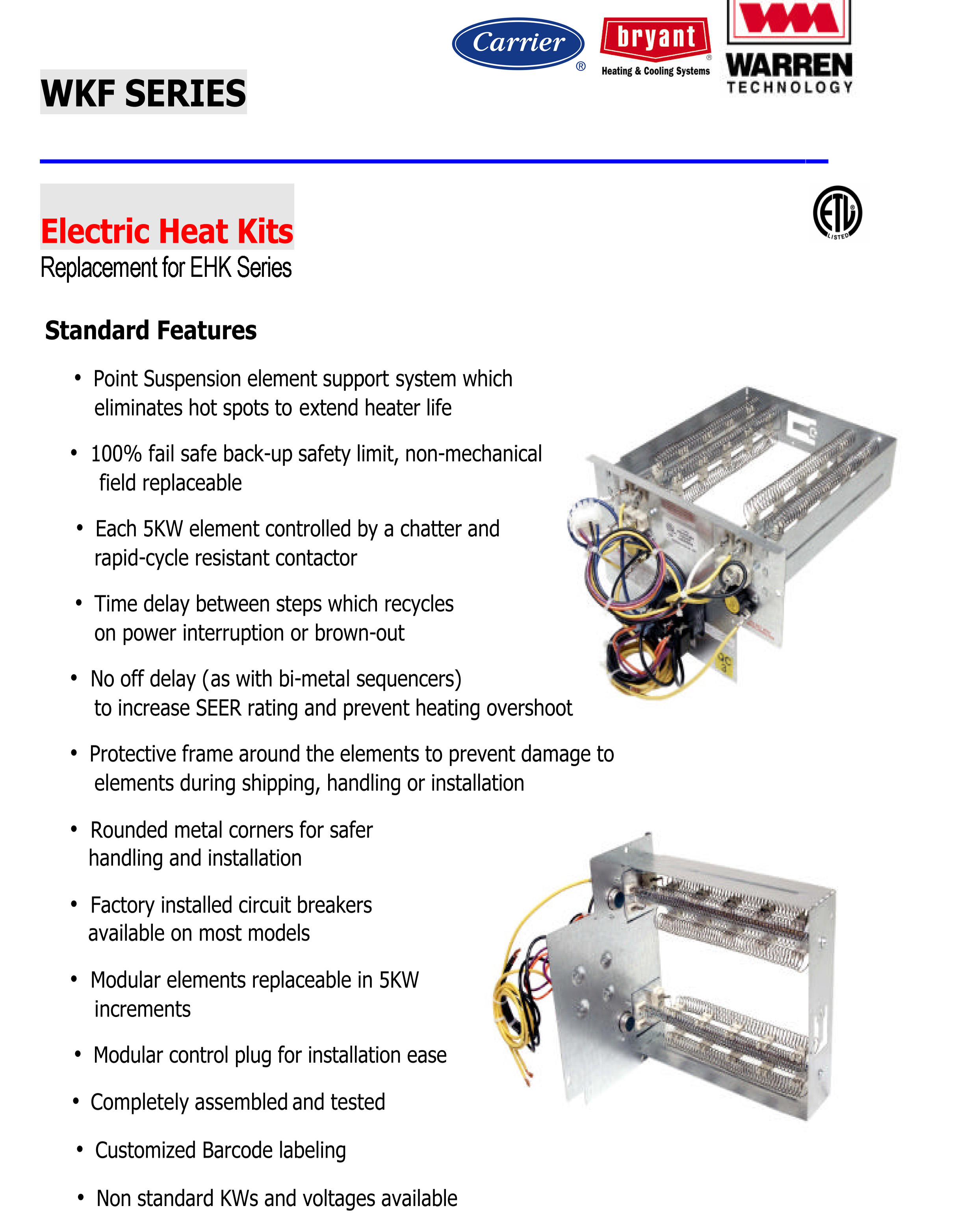

CARRIER / BRYANT / PAYNE Series: WKF
EquipmentFeatures
FE4A/5A, 40FKA, FV4A/B/C 002-006;
FA4A/B, FB4A/B/C, FC4B/C, FB5A 018-070;
PF1MN, PF4MN 018-061;
FC4D, FY4A, FY5B, FA4C, FX4B/C 018-060;
FH4A/B/C 001-004; FX4A 030-060, FX4D 019-061;
FK4C/D 001-006
* PRIMARY THERMAL OVERLOAD PROTECTION
* BRANCH CIRCUIT PROTECTION PER U.L./N.E.C.
* QUICK-CONNECT CONTROL & FAN PLUG
* INCLUDES POWER FUSING
** Convertible to Three Phase
^ Single Point kit for use with WKF1202, WKF1502 and WKF2002.
^^ Single Point kit for use with WKF1202B, WKF1502B and WKF2002B.
+ Convertible to Single Phase
'B' = HACR CIRCUIT BREAKER PROTECTION
'BS' = SINGLE POWER FEED AND HACR CIRCUIT BREAKER
'FS' = SINGLE POINT FUSING
