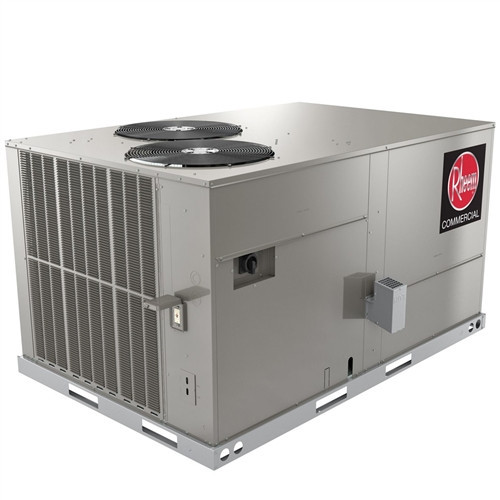

12.5 Ton Rheem VFD Three Phase 150K BTU Gas Package Unit, RGEDZT150A
12.5 Ton Rheem VFD Three Phase 150K BTU Gas Package Unit, RGEDZT150A

AHRI Certificate: Yes
AHRI Number: 201841271
AHRI Website: https://www.ahridirectory.org/


Availability: Usually Ships in 2 to 3 Business Days
Product Code: CALL172664

Crating


We highly recommend crating your system. This item is highly susceptible to damage, crating has proven to help prevent damage & overall better customer satisfaction. When not crated, mishandling is probable
System Set Up


Natural or Liquid Propane (LP) Gas

Please Select*:
Roof Curb

Used in Rooftop Applications*:
Curb Adapter

Custom Made to Order*:
NOTE: When ordering curb adapter, please provide brand & model # of existing unit upon checkout in comment box. This is required for proper fitment. Order cannot process until completed.
Economizer OR Fresh Air Damper

Brings In Outside Air*:
NOTE: Only one option can be selected. You cannot install damper & economizer on same system.

Qty:
Description

Rheem has been building on nearly a century of industry-leading innovations. This includes Scroll compressor technology, R-410A in packaged heat pumps above five tons, micro-channel heat exchangers and eSync Integration Technology in air and water systems. Now the Renaissance Line is that next step in evolution designed to provide perfect comfort, flexibility and support for any business applications. The 7.5-12.5 ton chassis is a direct replacement to the Carrier rooftop units and can used with existing roof curb.
Commercial Renaissance™ Line Package Gas Electric Units, Standard VFD and optional HumidiDry Technology™
Two stage cooling, PlusOne® Diagnostics with Dual 7-Segment LED Display, PlusOne® ServiceSmart package, IEER: Up to 14.6

RGED Standard Features Includes:
  • Factory charged with R410A HFC refrigerant
  • Wired and run tested
  • Scroll compressors with internal line break overload and high pressure protection
  • Model RGEDZT has a two-stage compressor
  • Convertible airflow - vertical down flow or horizontal side flow
  • Single-point electrical connections
  • Forkable base rails for easy handling and lifting
  • Cooling operation up to 125°F ambient
  • Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion
  • MicroChannel evaporator and condenser coil
  • PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, Qwik-Clean Drain Pan™
  • Plus One® Diagnostics with Dual 7-Segment LED Display
  • One-piece top cover and one-piece base pan with drawn supply and return opening
  • Two-piece control door
  • 1/4 turn fasteners on filter access door
  • Color-coded and labeled wiring
  • External lockable gauge ports
  • TXV refrigerant metering system
  • Solid-core liquid line filter drier
  • High pressure and low pressure/loss of charge protection
  • Insulation encapsulated throughout entire unit
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system
  • Variable Frequency Drive (VFD) blower is standard on Model RGEDZT
  • New product footprint with matching connections
  • Improved factory lead times
Limited Warranty
  • Compressor 3 Phase, Commercial Applications................Five (5) Years
  • Aluminized Heat Exchanger 3 Phase, Commercial Applications...............Ten (10) Years
  • Stainless Steel Heat Exchanger 3 Phase, Commercial Applications .........Twenty (20) Years
  • Parts 3 Phase, Commercial Applications................One (1) Year
